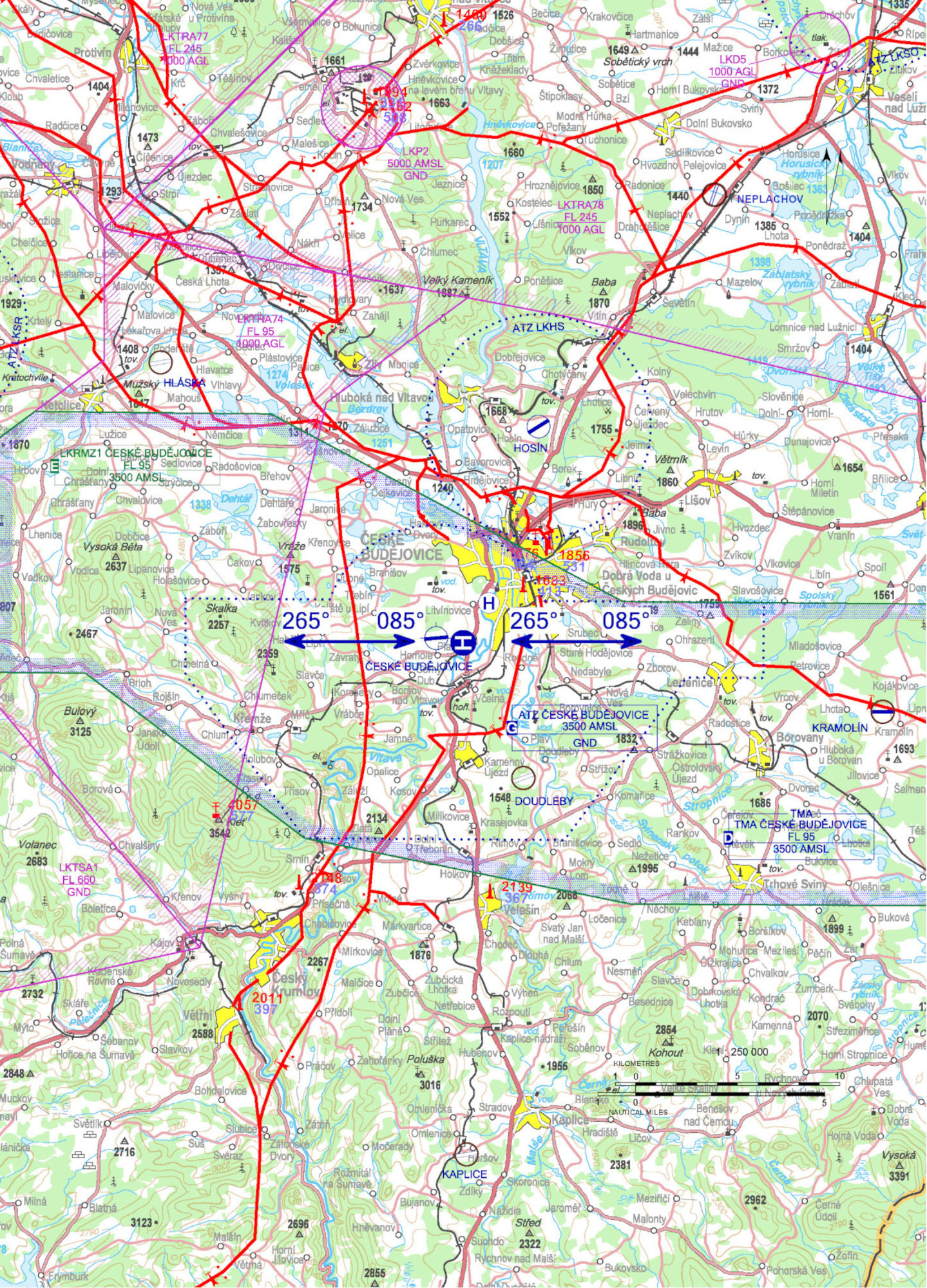

VOC
ADC
LKCA - České Budějovice - Základna HEMS
Private domestic heliport HEMS
VFR
day/night
4 km SSW České Budějovice town center
ELEV: 1340 ft / 408 m
H24
JET A-1
NIL
NIL
Cat. H1
| Approach: | Take-offs: | |
| VFR day | 085°, 265° | 085°, 265° |
| VFR night | 265° | 085°, 265° |
Only HEMS helicopter flights or flights agreed upon with the heliport operator are allowed.
surface-level HEMS heliport
value „D“ - 17 m
FATO – circle diameter 26 m, grass
SA – circle diameter 44 m, grass
TLOF 1 – square 10 m x 10 m, concrete, strength 6000 kg / 0,4 MPa
TLOF 2 - square 10 m x 10 m, concrete, strength 6000 kg / 0,4 MPa
WDI (50 m ESE)
FATO: marking/lights FATO, marking/lights of aiming point, recognition marking
TLOF 1: marking/lights TLOF, stand marking
TLOF 2: marking TLOF, stand marking
A-PAPI: 9,3°
ALS: shortened, length 25 m
Beacon
Descent gradient 1000 ft / 1 NM.
Heliport lighting system control is provided primarily remotely by radio signal from
the helicopter deck (by keying on FREQ 135,460) as follows:
3x within 5 seconds - intensity 10%
5x within 5 seconds - intensity 30%
7x within 5 seconds - intensity 100%
All lights turn off automatically 15 minutes after the radio remote control command.
Secondarily, the SZZ can be controlled locally from the heliport operator's workplace
(
+420 491 614 848).
Charges: NIL
Customs and immigration clearance: NIL
Obstacles: NIL
Zdravotnická záchranná služba Jihočeského kraje
B. Němcové 1931/6, 370 01 České Budějovice,
+420 602 118 465,
benesm@zzsjck.cz
Responsible person of the operator: Ing. Robert Rajtmajer - +420 602 888 361,
robert.rajtmajer@seznam.cz
Heliport service - HEMS Operations technician - +420 491 614 848
