Charts
INFO

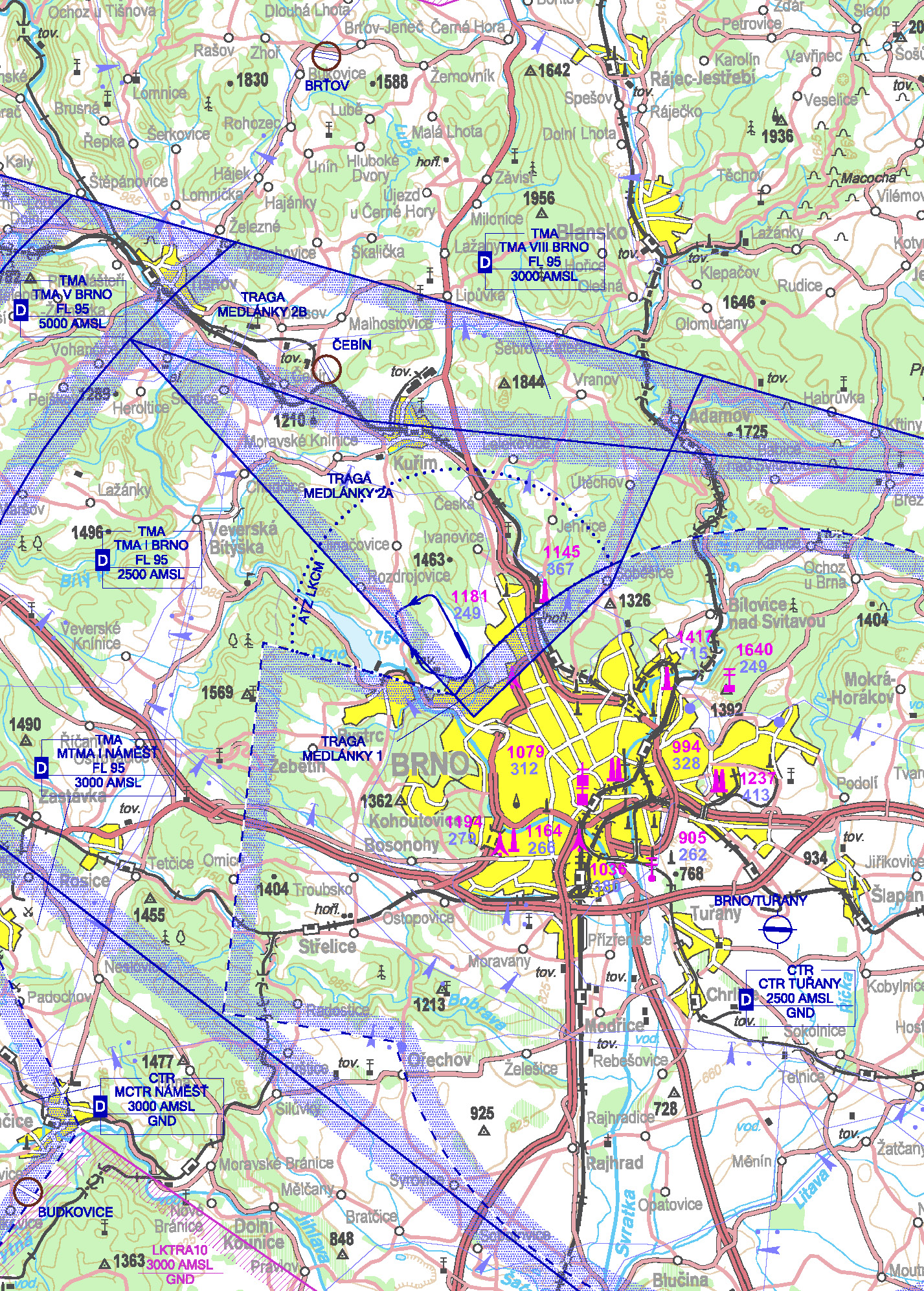

VOC
ADC
TEXT
LKCM - Medlánky
Public domestic aerodrome
VFR
day
6,5 km NW central station Brno
ELEV: 925 ft / 282 m
Circuit: 2000 ft / 610 m AMSL
15 APRSAT, SUN, HOL 0700-1400
in time of aeroclub operation
otherwise O/R 24 HR in advance
BA 95 Natural
ELF 100 ADD
O/R, limited
NIL
O/R
bus No. 41, 65, N90 from the bus stop Medlánky (1,5 km from the aeroclub building)
Customs and immigration clearance: NIL
Flights are allowed from 0700 to 1800 UTC only due to reduction of noise in airport vicinity.
The area Mniší Hory (ZOO Brno) shall not be overflown in low altitude when flying along the circuit.
During an approach to RWY 16 the road in front of THR RWY 16 shal be overflown at mimimum height 15 m from lowest part of aircraft or tow rope.

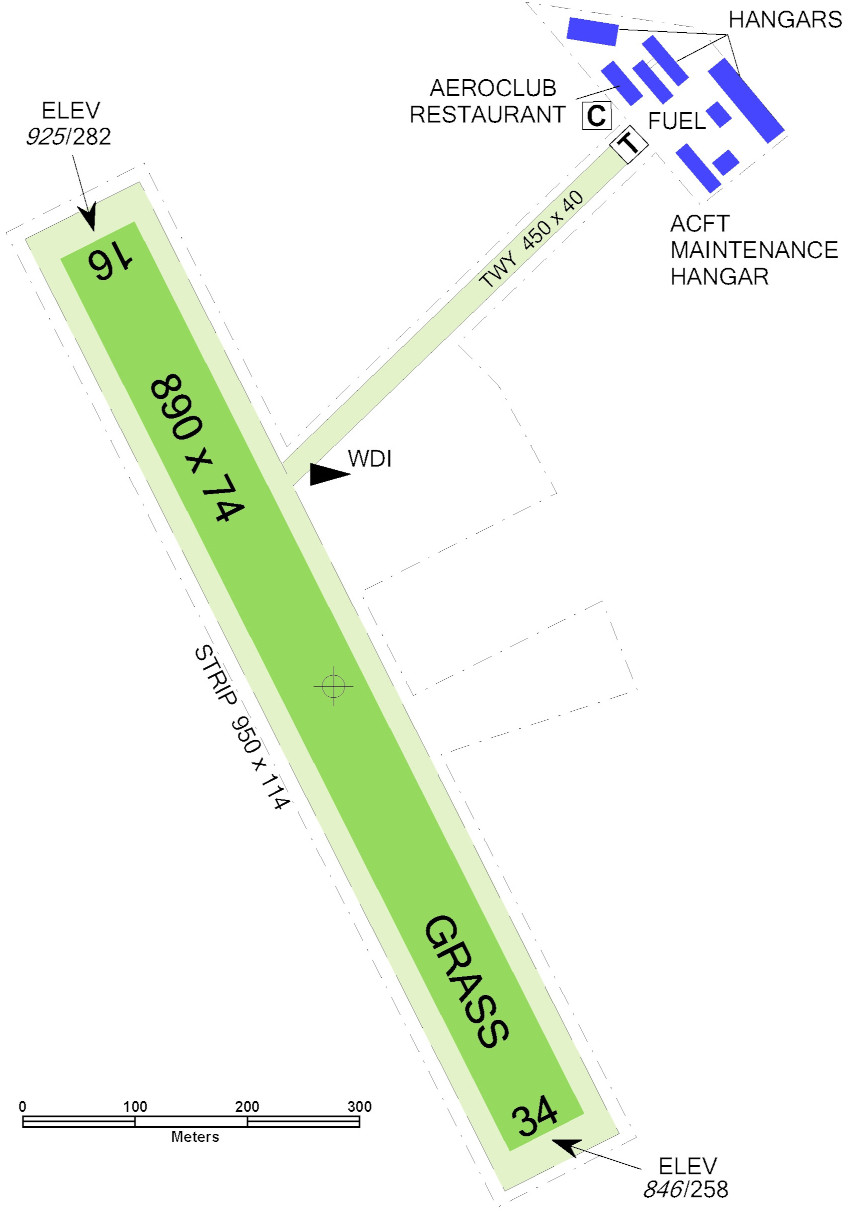

| RWY | Magnetic direction | RWY dimensions | Strength | TORA | TODA | ASDA | LDA |
|---|---|---|---|---|---|---|---|
| 16 | 155° | 890 x 74 | 5700 kg / 0,5 MPa | 890 | 920 | 890 | 890 |
| 34 | 335° | 890 x 74 | 5700 kg / 0,5 MPa | 890 | 920 | 890 | 890 |
Aeroklub Brno-Medlánky z.s.letiště Medlánky, Turistická 67, 621 00 Brno
+420 541 227 222akmedlanky@volny.cz vlp@lkcm.cz
David Trnečka (head of air traffic) - +420 605 582 292
Jan Šponer (head of air traffic) - +420 727 800 535
Medlánky RADIO unit (within operating hours) - +420 541 227 222
1Local traffic regulations and restrictions
1.1Traffic circuits
- RWY 34 left hand traffic circuits,
- RWY 16 right hand traffic circuits.
The traffic circuit altitude is 2000 ft/610 m AMSL.
The area Mniší Hory (ZOO Brno) shall not be overflown in low altitude when flying along the circuit.
1.2After take-off from RWY 16 maintain RWY heading to the distance approximately 300 m from the end of RWY then turn right heading 285° to avoid Komín housing estate (noise abatement) and then turn to heading 335°. Attention to the close proximity of CTR Tuřany boundary approximately 500 m from the end of RWY 16, it is necessary to hold outside of CTR before entering CTR until clearance from Tuřany TOWER is received - can not continue in direction of RWY 16 without clearance (penetration of controlled area)!
1.3Flights are allowed from 0700 to 1800 UTC only due to reduction of noise in airport vicinity.
1.4Training flights of powered aeroplanes are forbidden at the aerodrome.
1.5During an approach to RWY 16 the road in front of THR RWY 16 shal be overflown at mimimum height 15 m from lowest part of aircraft or tow rope.
1.6Arrivals to AD LKCM outside operational hours are allowed only by prior agreement with AD operator (check on the serviceability of movement areas).
2Additional information
2.1Arrival/departure of an aircraft with total length greater than or equal to 9 m or with maximum fuselage width greater than 2 m is permitted only by prior agreement with the aerodrome operator (to arrange rescue and firefighting services).
2.2Providing information to known traffic in English is on request in advance.
3Charges for aerodromes
3.1Landing charges
| Single-engine aircraft | 150,00 |
| Multi-engine aircraft | 250,00 |
| Ultralight aircraft | 100,00 |
| Helicopters | 250,00 |
3.2Parking charges
| Per each hour - open area | 10,00 |
| Per each hour - hangar | 20,00 |
| Per 24 hours - open area | 150,00 |
| Per 24 hours - hangar | 200,00 |
3.3Charges for passenger service
NIL
